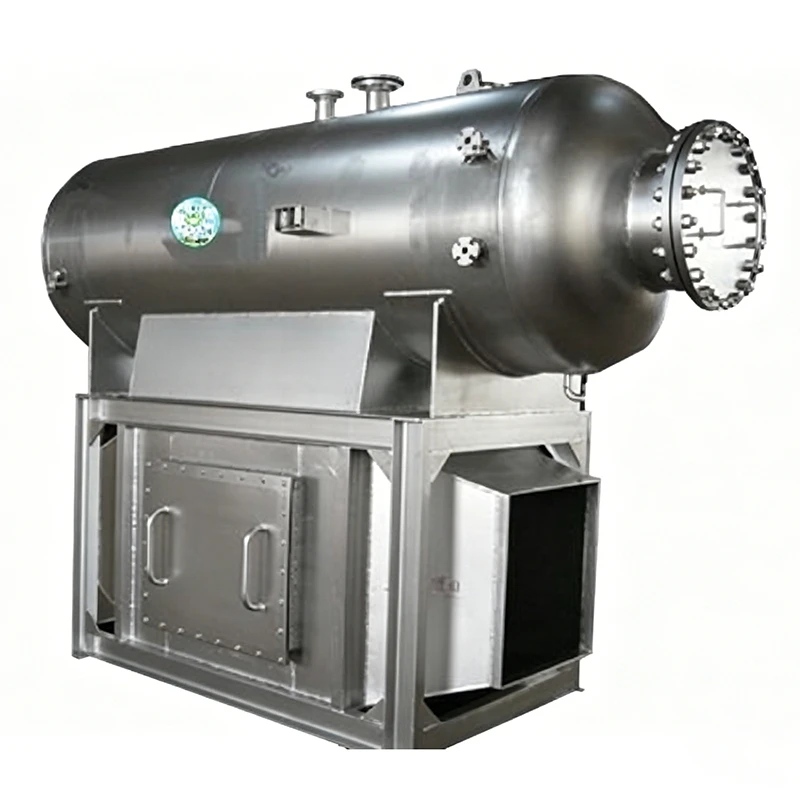

Separated Heat Pipe Heat Recovery Unit

The Separated Heat Pipe Heat Recovery Unit is based on separated heat pipe technology. The evaporation section and condensation section are installed separately and connected through pipelines.

This design allows the heat source and cold source to be placed in different locations, with a maximum separation distance of up to 50 meters. It provides strong installation flexibility, especially in complex industrial environments where space is limited.

The equipment is suitable for applications where conventional integrated systems cannot be installed.

The system achieves a heat exchange efficiency of 55% to 70%.

• Key technical parameters include:

Evaporation section temperature range: 50°C – 200°C

Condensation section temperature range: 20°C – 80°C

• Maximum transport distance:

Horizontal ≤ 50 m

Vertical ≤ 30 m

• Working fluid: Environmentally friendly refrigerant
• System structure: Fully sealed separated heat pipe design

The hot and cold sides are completely isolated, ensuring no cross-contamination.

The system contains no moving parts, resulting in stable and highly reliable operation.

The Separated Heat Pipe Heat Recovery Unit provides both high efficiency and installation flexibility.

The main advantage of this system is its ability to separate the heat source and heat utilization area.

In many industrial scenarios, the heat source is located in confined or inconvenient spaces where traditional heat exchange equipment cannot be installed. With the separated heat pipe design, the exchanger can be installed in a more accessible location while the heat source remains in place.

Heat is transferred efficiently through the sealed heat pipe system, ensuring minimal energy loss.

The system requires no moving parts and therefore does not require regular maintenance, making it highly reliable for long-term operation.

We have been developing heat pipe technologies since 1996 and hold multiple patents in this field. The system is designed to operate under dusty and corrosive gas conditions, making it suitable for harsh industrial and mining environments where many conventional systems fail.

The Separated Heat Pipe Heat Recovery Unit is specifically engineered for complex and demanding installations.

• This unit is covered by a 12-month warranty.
• We provide full system design support, including customized layout planning for separated installation distances and heat transfer requirements.
• Custom configurations are available based on project conditions.
• Our after-sales team responds within 24 hours. Due to its no-moving-parts design, the system requires minimal maintenance and offers long service life under harsh industrial conditions.
