Use Waste Water Directly as Heat Source

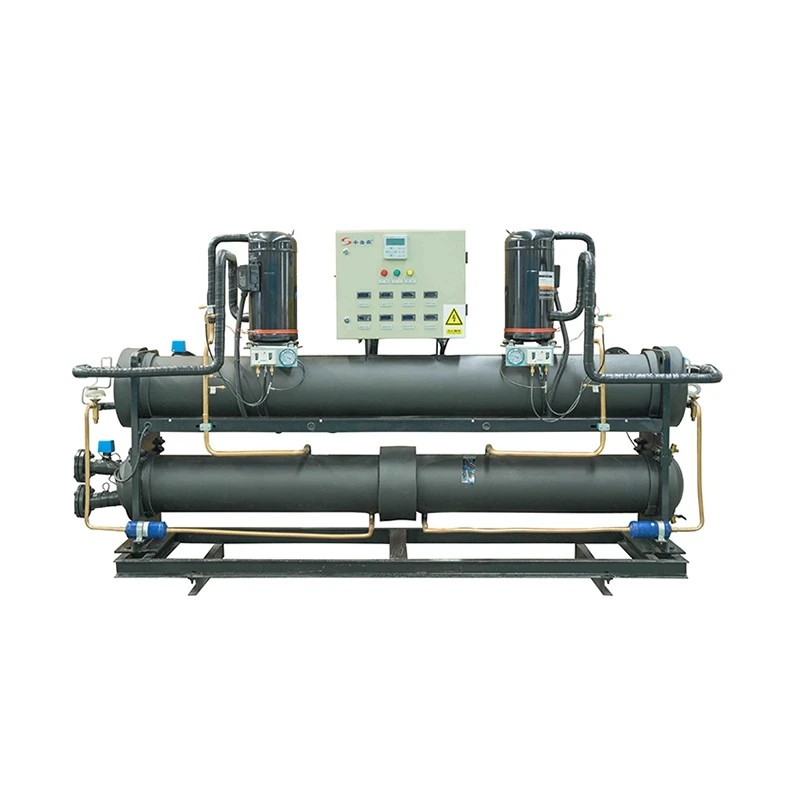

The Mine Waste Water Heat Pump System utilizes thermal energy from mine production wastewater as a direct heat source.
The wastewater does not require pre-treatment before entering the system. The unit is equipped with automatic cleaning and anti-clogging technology, allowing it to operate under conditions of high suspended solids and high turbidity commonly found in mining wastewater.
The equipment significantly reduces the cost associated with wastewater pre-treatment and improves overall system efficiency.
Strong Processing Capacity
The system provides a heating capacity range of 500 kW to 3000 kW.
Key technical parameters include:
- Heating COP: 3.5 – 5.0
- Wastewater inlet temperature: 10°C – 25°C
- Water supply temperature: 45°C – 55°C
- Wastewater treatment capacity: 50 – 500 m³/h
- Heat exchanger type: Special anti-clogging design
- Cleaning system: Online automatic backwashing (no shutdown required)
The system is designed to handle large volumes of wastewater while maintaining stable and efficient operation.
The Mine Waste Water Heat Pump System delivers reliable performance under high-load industrial conditions.
Key Advantages and Unique Technology
The main advantage of this system is its ability to use untreated mine wastewater directly as a heat source.
Many conventional systems require pre-filtration and water treatment, which increases both investment and operating costs. In contrast, this system is equipped with a specially designed anti-clogging heat exchanger that can operate under high suspended solids conditions.
The integrated online backwashing system allows automatic cleaning without interrupting operation, ensuring continuous heating performance.
We have been specializing in heat pump systems since 1996 and have extensive experience in mine water applications. As an ABB-authorized system integrator, we ensure stable and reliable control system performance.
The Mine Waste Water Heat Pump System is designed specifically for harsh mining environments where conventional systems often fail.
Technical Data
|
Item |
Parameter |
|
Heating Capacity |
500 kW – 3000 kW |
|
Heating COP |
3.5 – 5.0 |
|
Wastewater Temperature |
10°C – 25°C |
|
Water Supply Temperature |
45°C – 55°C |
|
Wastewater Exchanger |
Special Anti-clogging Type |
|
Auto Cleaning System |
Online Backwashing |
|
Wastewater Capacity |
50 – 500 m³/h |
Warranty and Support
- This system is covered by a 12-month warranty.
- We provide professional wastewater quality analysis services to determine system suitability for direct heat recovery applications.
- Customized system design is available, including capacity selection and heat exchanger configuration based on actual mine wastewater conditions.
- Our after-sales service team responds within 24 hours. With more than 25 years of engineering experience since 1996, we provide proven and reliable wastewater heat pump solutions for harsh mining environments.
