Turn Low-grade Heat into Electricity

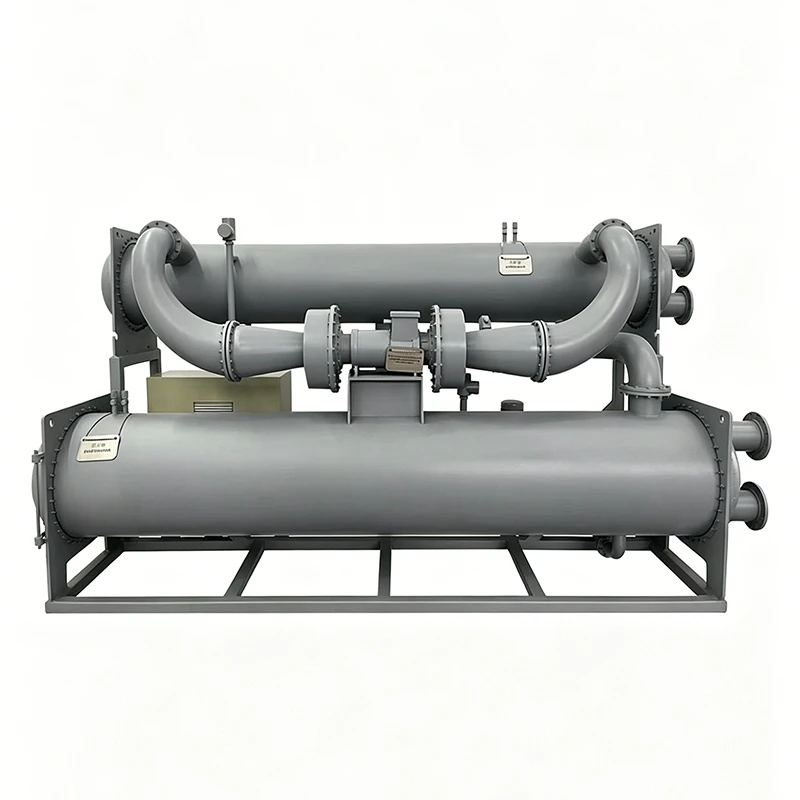

The ORC Waste Heat Power Generation Equipment uses Organic Rankine Cycle technology. It converts low-grade waste heat in the range of 80℃ to 200℃ into electricity. In the past, this low-grade heat was simply wasted. Now, it can be used to generate power. The system is compatible with various types of low-grade heat sources. The equipment unlocks the value of previously wasted thermal energy.
Good Power Generation Efficiency
The heat source temperature ranges from 80℃ to 200℃. The single-unit power output ranges from 50 kW to 1000 kW. The power generation efficiency is 10% to 18%. The working fluid is R245fa or R123. The turbine type is centrifugal or screw. The cooling method can be water-cooled or air-cooled. The annual operating hours reach over 7,500 hours. The system features a fully automatic, unattended operation mode. The ORC Waste Heat Power Generation Equipment provides a reliable source of electricity.
Key Advantages and Automatic Operation
The main value of our ORC system is its ability to convert waste heat into electricity. Previously, low-grade heat could only be used for heating purposes. Now it can be directly converted into electrical power. The electricity can be used for self-consumption or fed into the grid.
We have been in operation since 1996 and have nearly 30 years of experience in thermal energy systems. The system is fully automated and does not require dedicated operators. If your facility has waste heat sources such as methane generator exhaust, boiler exhaust, or other industrial waste heat, the ORC Waste Heat Power Generation Equipment can be an effective solution for power generation.
Technical Data
|
Item |
Parameter |
|
Heat Source Temperature |
80–200℃ |
|
Single Unit Power |
50 kW – 1000 kW |
|
Generation Efficiency |
10% – 18% |
|
Organic Fluid |
R245fa / R123 |
|
Turbine Type |
Centrifugal / Screw |
|
Cooling Method |
Water-cooled / Air-cooled |
|
Annual Operating Hours |
≥7500 h |
|
Automation Level |
Fully Automatic Unattended |
Warranty and Support
- The ORC system comes with a 12-month warranty. We provide heat source testing services to evaluate power generation potential and return on investment. Custom power outputs ranging from 50 kW to 1000 kW are supported.
- The system is fully automated and does not require dedicated operators. Our after-sales team responds within 24 hours. We have been in business since 1996 and have a professional engineering team specializing in waste heat power generation.
