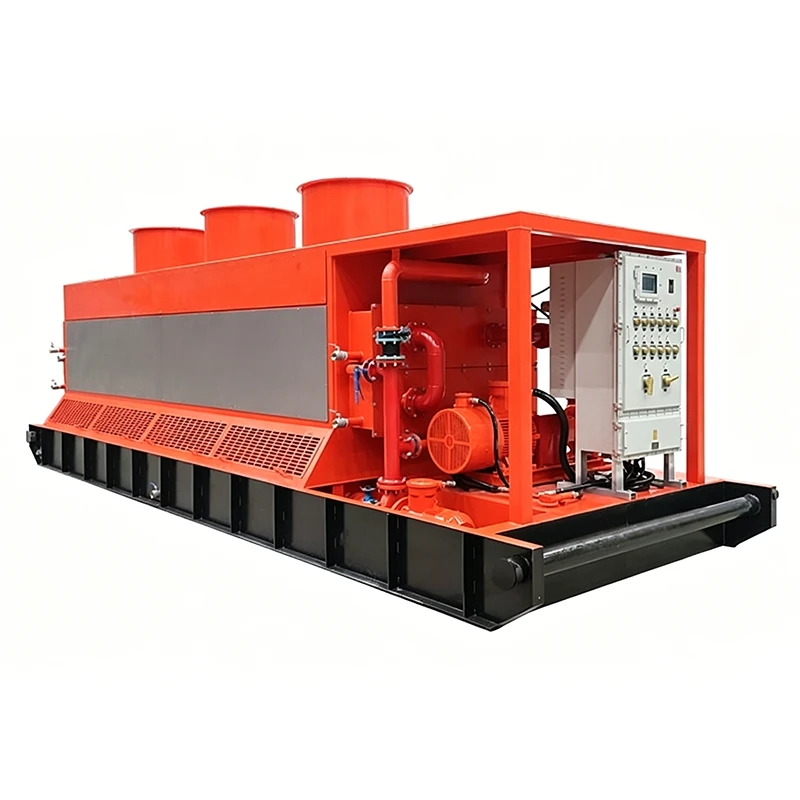

Surface Cooling for Underground Use
The Mining Underground Cooling System adopts a surface centralized cooling approach. Chilled water is produced on the surface and then transported underground through insulated pipelines.
This method provides large cooling capacity and wide coverage, making it especially suitable for large and deep mining operations. The equipment is an efficient solution for large-scale underground cooling applications.
Practical Parameters
The single-unit cooling capacity ranges from 50 kW to 500 kW. The air supply temperature ranges from 16℃ to 22℃. The air volume ranges from 5,000 to 30,000 cubic meters per hour.
The working ambient temperature is 25℃ to 40℃, and relative humidity is ≤95%. Noise levels are controlled within 85 dB(A). The cooling method can be either water-cooled or air-cooled. The Mining Underground Cooling System delivers stable and reliable performance under demanding conditions.
Key Advantages and Easy Maintenance
The main advantage of surface centralized cooling is ease of maintenance. All cooling units are installed on the surface, so maintenance personnel do not need to go underground for repairs.
The system is not restricted by underground space, allowing the use of larger and more efficient equipment. Our insulated pipelines are designed with very low thermal loss, ensuring efficient energy delivery underground.
We have been in business since 1996 and have extensive experience in mining cooling systems. We have designed and delivered centralized cooling solutions for multiple deep mining projects with excellent results.
The Mining Underground Cooling System is a smart and cost-effective solution for large-scale mining operations.
Technical Data
|
Item |
Parameter |
|
Single Unit Cooling Capacity |
50 kW – 500 kW |
|
Air Supply Temperature |
16℃ – 22℃ |
|
Air Volume |
5,000 – 30,000 m³/h |
|
Working Ambient Temperature |
25℃ – 40℃ |
|
Relative Humidity |
≤95% |
|
Noise Level |
≤85 dB(A) |
|
Cooling Method |
Water-cooled / Air-cooled |
Warranty and Support
- This system comes with a 12-month warranty. We provide complete solution design services, including cooling capacity calculation and pipeline selection.
- We supply all equipment and provide detailed installation drawings as well as commissioning guidance. After-sales support includes remote technical assistance.
- Our insulated pipelines come with a 10-year warranty, which reflects our quality assurance commitment. For overseas projects, we provide complete English and Chinese technical documentation.
